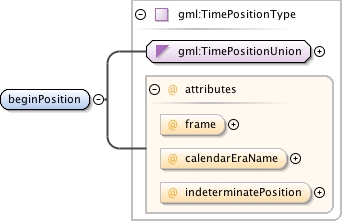

Element gml:TimePeriodType / gml:beginPosition
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index604.tmp#id378 index605.tmp#id380 index605.tmp#id381 index605.tmp#id382 index605.tmp#id377
Type gml:TimePositionType
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="beginPosition" type="gml:TimePositionType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd

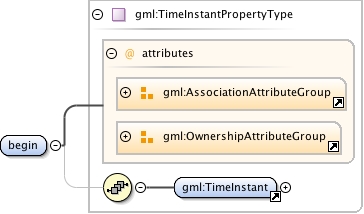

Element gml:TimePeriodType / gml:begin
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index1.tmp#id86 index0.tmp#id104 index548.tmp#id179 index549.tmp#id759
Type gml:TimeInstantPropertyType
Properties
content: complex
Model gml:TimeInstant
Children gml:TimeInstant
Instance

<gml:begin xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:TimeInstant frame="#ISO-8601" gml:id="">{1,1}</gml:TimeInstant>
</gml:begin>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="begin" type="gml:TimeInstantPropertyType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd
Element gml:TimePeriodType / gml:endPosition
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index604.tmp#id378 index605.tmp#id380 index605.tmp#id381 index605.tmp#id382 index605.tmp#id377
Type gml:TimePositionType
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="endPosition" type="gml:TimePositionType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd

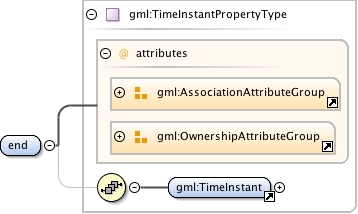

Element gml:TimePeriodType / gml:end
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index1.tmp#id86 index0.tmp#id104 index548.tmp#id179 index549.tmp#id759
Type gml:TimeInstantPropertyType
Properties
content: complex
Model gml:TimeInstant
Children gml:TimeInstant
Instance

<gml:end xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:TimeInstant frame="#ISO-8601" gml:id="">{1,1}</gml:TimeInstant>
</gml:end>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="end" type="gml:TimeInstantPropertyType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd

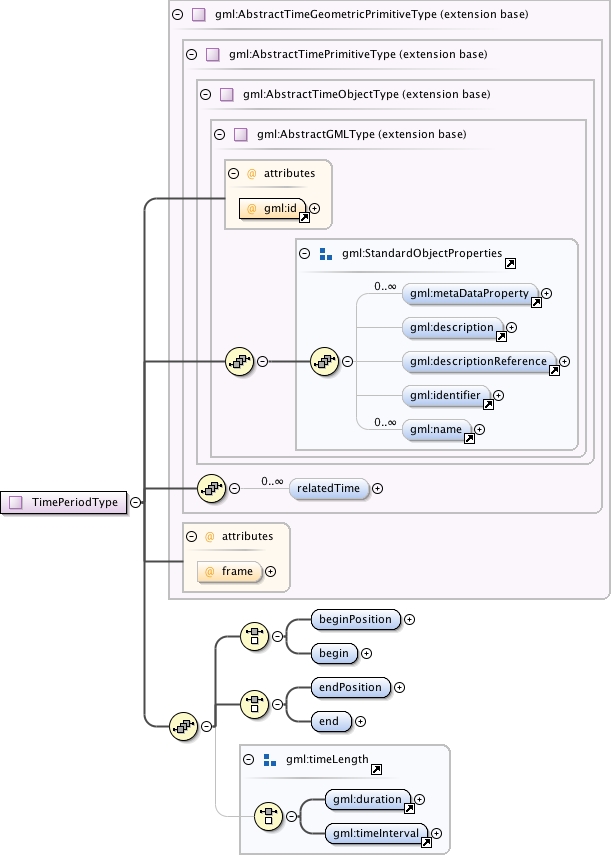

Complex Type gml:TimePeriodType
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index170.tmp#id185 index171.tmp#id186 index171.tmp#id184 index1050.tmp#id756 index1050.tmp#id755 index1051.tmp#id761 index1051.tmp#id762 index1051.tmp#id763 index1051.tmp#id764 index758.tmp#id766 index759.tmp#id767 index1052.tmp#id765
Type extension of gml:AbstractTimeGeometricPrimitiveType
Type hierarchy
Used by
Element gml:TimePeriod
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:relatedTime* , (gml:beginPosition | gml:begin) , (gml:endPosition | gml:end) , (gml:duration | gml:timeInterval)
Children gml:begin, gml:beginPosition, gml:description, gml:descriptionReference, gml:duration, gml:end, gml:endPosition, gml:identifier, gml:metaDataProperty, gml:name, gml:relatedTime, gml:timeInterval
Attributes
QName Type Fixed Default Use Annotation
frame anyURI #ISO-8601 optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="TimePeriodType">
  <complexContent>
    <extension base="gml:AbstractTimeGeometricPrimitiveType">
      <sequence>
        <choice>
          <element name="beginPosition" type="gml:TimePositionType"/>
          <element name="begin" type="gml:TimeInstantPropertyType"/>
        </choice>
        <choice>
          <element name="endPosition" type="gml:TimePositionType"/>
          <element name="end" type="gml:TimeInstantPropertyType"/>
        </choice>
        <group ref="gml:timeLength" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd
