Element gml:SolidType / gml:exterior
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index353.tmp#id552 index1020.tmp#id551
Type gml:ShellPropertyType
Properties
content: complex
minOccurs: 0
Model gml:Shell
Children gml:Shell
Instance

<gml:exterior>
  <gml:Shell aggregationType="">{1,1}</gml:Shell>
</gml:exterior>
Source

<element name="exterior" type="gml:ShellPropertyType" minOccurs="0"/>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
Element gml:SolidType / gml:interior
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index353.tmp#id552 index1020.tmp#id551
Type gml:ShellPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model gml:Shell
Children gml:Shell
Instance

<gml:interior>
  <gml:Shell aggregationType="">{1,1}</gml:Shell>
</gml:interior>
Source

<element name="interior" type="gml:ShellPropertyType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
Complex Type gml:SolidType
Namespace http://www.opengis.net/gml/3.2

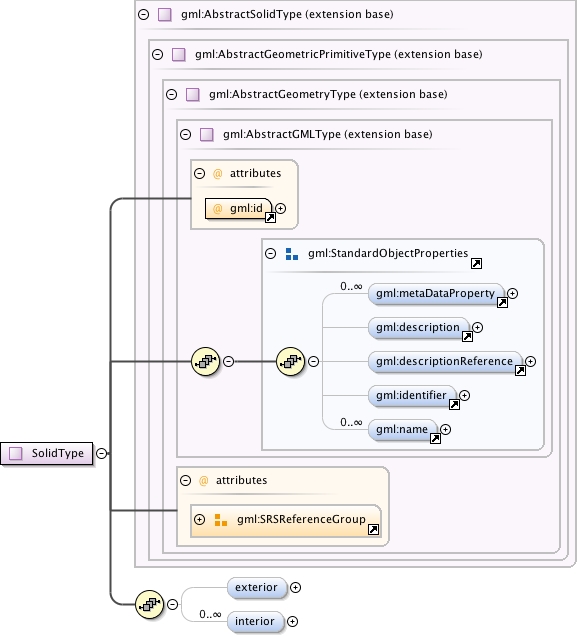

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238 index840.tmp#id422 index841.tmp#id550 index841.tmp#id554
Type extension of gml:AbstractSolidType
Type hierarchy
Used by
Element gml:Solid
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:exterior{0,1} , gml:interior*
Children gml:description, gml:descriptionReference, gml:exterior, gml:identifier, gml:interior, gml:metaDataProperty, gml:name
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="SolidType">
  <complexContent>
    <extension base="gml:AbstractSolidType">
      <sequence>
        <element name="exterior" type="gml:ShellPropertyType" minOccurs="0"/>
        <element name="interior" type="gml:ShellPropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
