Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Annotations
<html:div xmlns= "http://www.w3.org/1999/xhtml" >
<p />
</html:div>

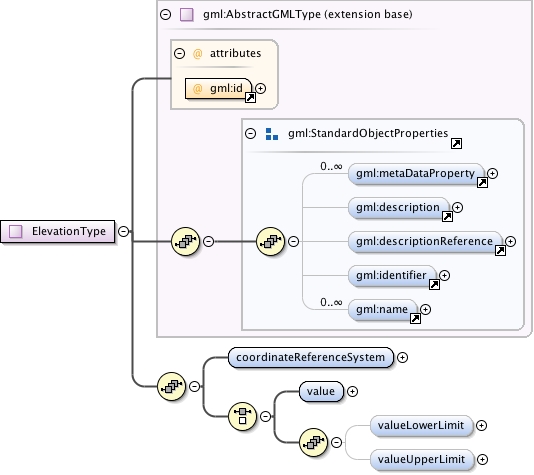

Diagram
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model gml:metaDataProperty* gml:description{0,1} gml:descriptionReference{0,1} gml:identifier{0,1} gml:name* womlcore:coordinateReferenceSystem womlcore:value womlcore:valueLowerLimit{0,1} womlcore:valueUpperLimit{0,1}
Children gml:description gml:descriptionReference gml:identifier gml:metaDataProperty gml:name womlcore:coordinateReferenceSystem womlcore:value womlcore:valueLowerLimit womlcore:valueUpperLimit
Attributes
QName
Type
Fixed
Default
Use
Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "ElevationType" >
<annotation >
<documentation >
<html:div xmlns= "http://www.w3.org/1999/xhtml" >
<p />
</html:div>
</documentation>
</annotation>
<complexContent >
<extension base= "gml:AbstractGMLType" >
<sequence >
<element name= "coordinateReferenceSystem" type= "anyURI" minOccurs= "1" maxOccurs= "1" />
<choice >
<element name= "value" type= "gml:MeasureType" minOccurs= "1" maxOccurs= "1" />
<sequence >
<element name= "valueLowerLimit" type= "gml:MeasureType" minOccurs= "0" maxOccurs= "1" />
<element name= "valueUpperLimit" type= "gml:MeasureType" minOccurs= "0" maxOccurs= "1" />
</sequence>
</choice>
</sequence>
</extension>
</complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
