Element metobj:DynamicMeteorologicalObjectType/metobj:allowedTimeInterpolation
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

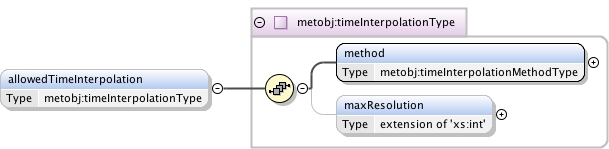

Diagram
Diagram docindex81.tmp#id885 docindex81.tmp#id886 docindex81.tmp#id884
Type metobj:timeInterpolationType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model metobj:method , metobj:maxResolution{0,1}
Children metobj:maxResolution, metobj:method
Source
<xs:element name="allowedTimeInterpolation" type="metobj:timeInterpolationType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-collection.xsd
Complex Type metobj:DynamicMeteorologicalObjectType
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Annotations
<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>A container feature for defining a Meteorological Object moving and evolving in time. Each timeInstance element should usually contain or refer to the same type of the feature object, unless it is the purpose to model a feature morphing from one type to another (closely related) type in time.</p>
  <p>Allowed time interpolation methods to use when modeling the object state between the given time instances is given by allowedTimeInterpolation elements. If the element is not given, the object state is not meant to be interpolated between the given time instances.</p>
</html:div>

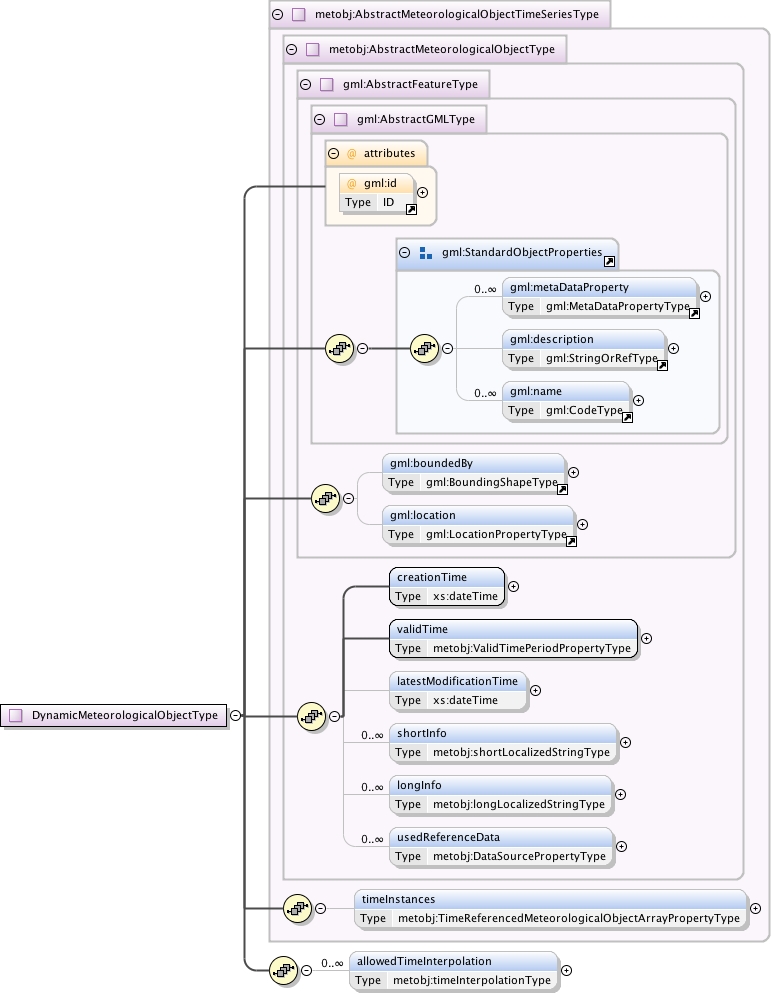

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex12.tmp#id54 docindex13.tmp#id84 docindex14.tmp#id31 docindex15.tmp#id120 docindex15.tmp#id121 docindex15.tmp#id182 docindex15.tmp#id183 docindex15.tmp#id187 docindex15.tmp#id190 docindex15.tmp#id30 docindex66.tmp#id935 docindex66.tmp#id934 docindex362.tmp#id950
Type extension of metobj:AbstractMeteorologicalObjectTimeSeriesType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , metobj:timeInstances{0,1} , metobj:allowedTimeInterpolation*
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:allowedTimeInterpolation, metobj:creationTime, metobj:latestModificationTime, metobj:longInfo, metobj:shortInfo, metobj:timeInstances, metobj:usedReferenceData, metobj:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source
<xs:complexType name="DynamicMeteorologicalObjectType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>A container feature for defining a Meteorological Object moving and evolving in time. Each timeInstance element should usually contain or refer to the same type of the feature object, unless it is the purpose to model a feature morphing from one type to another (closely related) type in time.</p>
        <p>Allowed time interpolation methods to use when modeling the object state between the given time instances is given by allowedTimeInterpolation elements. If the element is not given, the object state is not meant to be interpolated between the given time instances.</p>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractMeteorologicalObjectTimeSeriesType">
      <xs:sequence>
        <xs:element name="allowedTimeInterpolation" type="metobj:timeInterpolationType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-collection.xsd
