Schema documentation for component metobj:MeteorologicalObjectGroupType

Showing:

Annotations

Attributes

Diagrams

Properties

Source

Used by

Complex Type metobj:MeteorologicalObjectGroupType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

Annotations

General group of Met Objects.

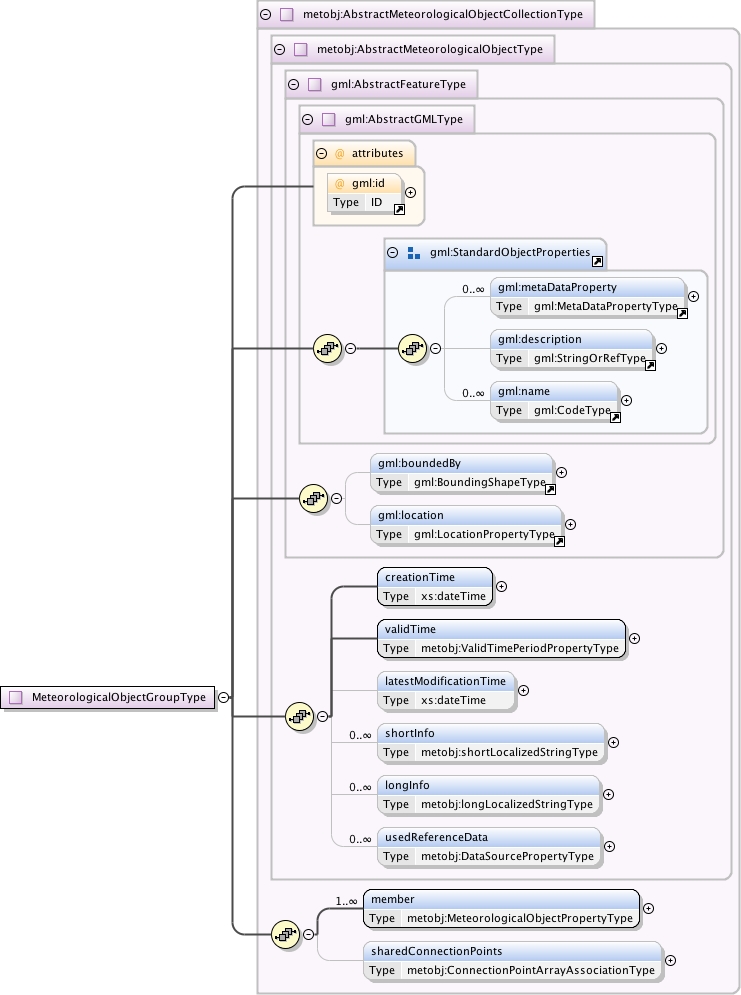

Diagram

Type

extension of metobj:AbstractMeteorologicalObjectCollectionType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractMeteorologicalObjectCollectionType
      - metobj:MeteorologicalObjectGroupType

Properties

abstract:

true

Used by

Element

metobj:MeteorologicalObjectGroup

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , metobj:member+ , metobj:sharedConnectionPoints{0,1}

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:creationTime, metobj:latestModificationTime, metobj:longInfo, metobj:member, metobj:sharedConnectionPoints, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:complexType name="MeteorologicalObjectGroupType" abstract="true">
  <xs:annotation>
    <xs:documentation>General group of Met Objects.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractMeteorologicalObjectCollectionType"/>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-collection.xsd
