Schema documentation for component womlswo:JetStream

Showing:

Attributes

Diagrams

Instances

Properties

Source

Element womlswo:JetStream

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

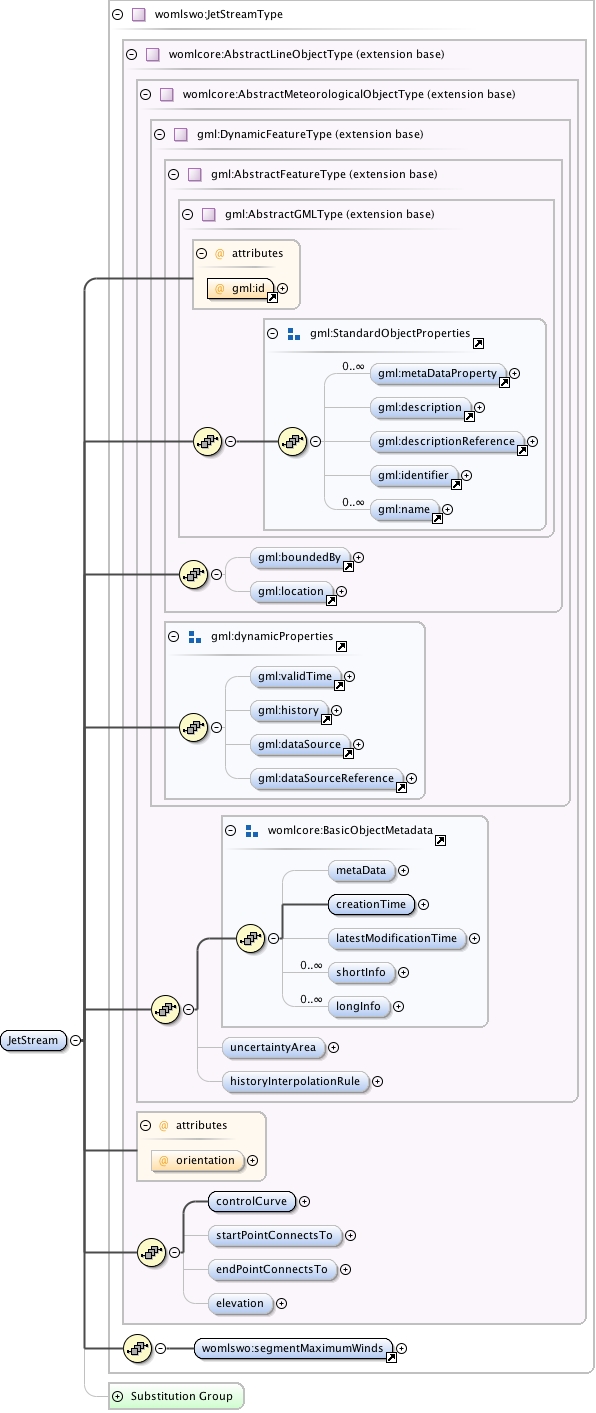

Diagram

Type

womlswo:JetStreamType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractLineObjectType

        womlswo:JetStreamType

Properties

content:

complex

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , womlcore:controlCurve , womlcore:startPointConnectsTo{0,1} , womlcore:endPointConnectsTo{0,1} , womlcore:elevation{0,1} , womlswo:segmentMaximumWinds

Children

gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:validTime, womlcore:controlCurve, womlcore:creationTime, womlcore:elevation, womlcore:endPointConnectsTo, womlcore:historyInterpolationRule, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:shortInfo, womlcore:startPointConnectsTo, womlcore:uncertaintyArea, womlswo:segmentMaximumWinds

Instance

<womlswo:JetStream gml:id="" orientation="+">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</womlswo:JetStream>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

orientation

gml:SignType

optional

Source

<element name="JetStream" type="womlswo:JetStreamType" substitutionGroup="womlcore:AbstractLineObject"/>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-front.xsd
