Schema documentation for component womlswo:JetStreamType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type womlswo:JetStreamType

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

Annotations

Concrete Met Object type for jets. Extends the AbstractLineObjectType
by introducing "segmentMaximumWinds" element.

Different values for maximum wind speeds along the line
are given by separating the control curve of the feature
into several segments: each significant change in the
wind speed and/or elevation of the jet begins a new curve
segment. Wind speeds and the jet elevations for each
segment must be given in segmentMaximumWinds property.

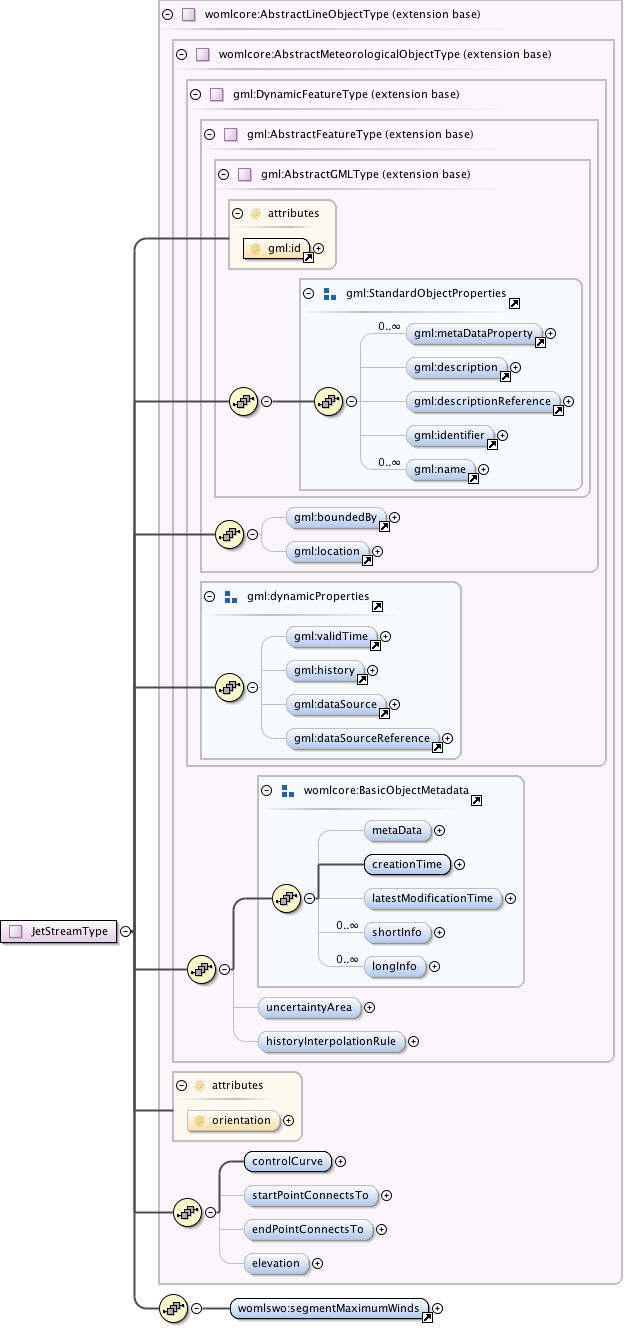

Diagram

Type

extension of womlcore:AbstractLineObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractLineObjectType

        womlswo:JetStreamType

Used by

Element

womlswo:JetStream

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , womlcore:controlCurve , womlcore:startPointConnectsTo{0,1} , womlcore:endPointConnectsTo{0,1} , womlcore:elevation{0,1} , womlswo:segmentMaximumWinds

Children

gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:validTime, womlcore:controlCurve, womlcore:creationTime, womlcore:elevation, womlcore:endPointConnectsTo, womlcore:historyInterpolationRule, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:shortInfo, womlcore:startPointConnectsTo, womlcore:uncertaintyArea, womlswo:segmentMaximumWinds

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

orientation

gml:SignType

optional

Source

<complexType name="JetStreamType">
  <annotation>
    <documentation>Concrete Met Object type for jets. Extends the AbstractLineObjectType by introducing "segmentMaximumWinds" element. Different values for maximum wind speeds along the line are given by separating the control curve of the feature into several segments: each significant change in the wind speed and/or elevation of the jet begins a new curve segment. Wind speeds and the jet elevations for each segment must be given in segmentMaximumWinds property.</documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:AbstractLineObjectType">
      <sequence>
        <element ref="womlswo:segmentMaximumWinds"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-front.xsd
