Element womlswo:StormType / womlswo:rainPhase
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15
Diagram
Diagram index929.tmp#id2421
Type womlswo:rainPhaseType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
enumeration rain
enumeration snow
enumeration fog
enumeration sleet
enumeration hail
enumeration freezing-precipitation
enumeration drizzle
enumeration mixed
enumeration unknown
Source

<element name="rainPhase" type="womlswo:rainPhaseType" minOccurs="0" maxOccurs="1"/>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-precipitation.xsd
Element womlswo:StormType / womlswo:approximateRainFall
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15

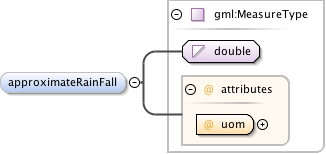

Diagram
Diagram index102.tmp#id317 index102.tmp#id316
Type gml:MeasureType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="approximateRainFall" type="gml:MeasureType" minOccurs="0" maxOccurs="1"/>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-precipitation.xsd
Element womlswo:StormType / womlswo:isThunderstorm
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isThunderstorm" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-precipitation.xsd
Complex Type womlswo:StormType
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15
Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Concrete Met Object type for storms.</p>See http://sweet.jpl.nasa.gov/2.1/phenAtmoPrecipitation.owl#Storm</html:div>

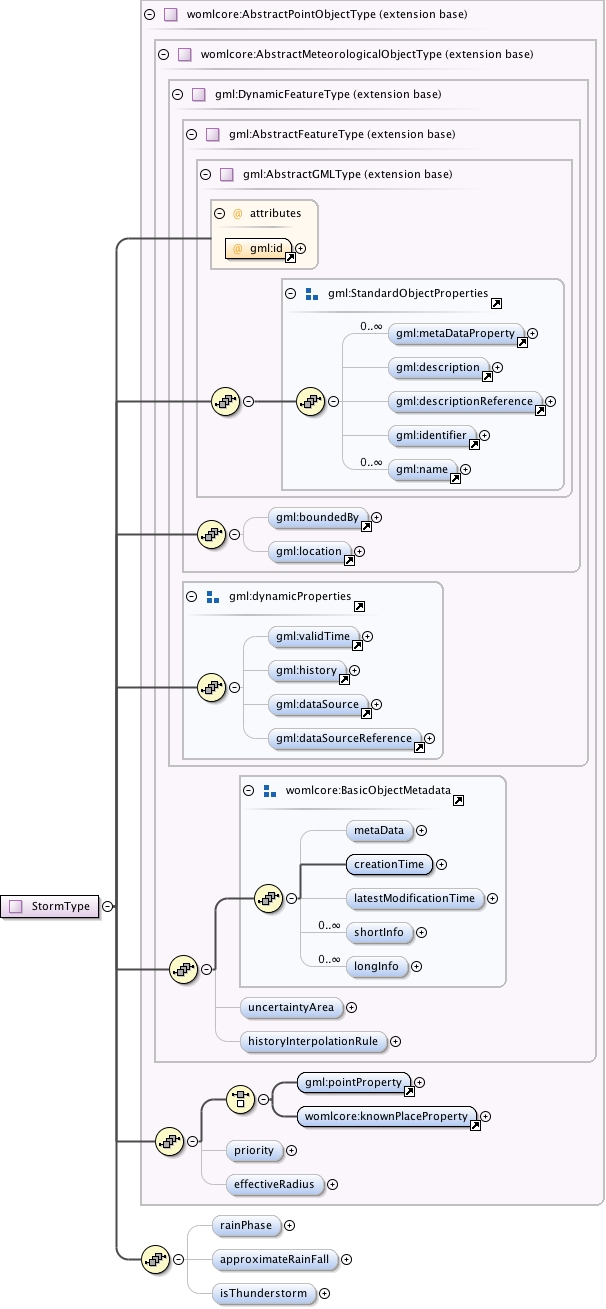

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index42.tmp#id112 index43.tmp#id136 index44.tmp#id76 index45.tmp#id176 index57.tmp#id189 index58.tmp#id198 index59.tmp#id199 index60.tmp#id175 index61.tmp#id75 index62.tmp#id201 index62.tmp#id226 index62.tmp#id227 index62.tmp#id228 index62.tmp#id230 index62.tmp#id200 index63.tmp#id233 index63.tmp#id294 index63.tmp#id74 index64.tmp#id254 index65.tmp#id306 index66.tmp#id314 index66.tmp#id315 index66.tmp#id73 index206.tmp#id2429 index206.tmp#id2430 index206.tmp#id2431
Type extension of womlcore:AbstractPointObjectType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:rainPhase{0,1} , womlswo:approximateRainFall{0,1} , womlswo:isThunderstorm{0,1}
Children gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:approximateRainFall, womlswo:isThunderstorm, womlswo:rainPhase
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="StormType">
  <annotation>
    <documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Concrete Met Object type for storms.</p>See http://sweet.jpl.nasa.gov/2.1/phenAtmoPrecipitation.owl#Storm</html:div>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:AbstractPointObjectType">
      <sequence>
        <element name="rainPhase" type="womlswo:rainPhaseType" minOccurs="0" maxOccurs="1"/>
        <element name="approximateRainFall" type="gml:MeasureType" minOccurs="0" maxOccurs="1"/>
        <element name="isThunderstorm" type="boolean" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-precipitation.xsd
