Element womlswo:AbstractPressureCenterType / womlswo:tendency
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15
Diagram
Diagram index1019.tmp#id2436
Type womlswo:PressureCenterTendencyType
Properties
content: simple
Facets
enumeration strengthening
enumeration weakening
Source

<element name="tendency" type="womlswo:PressureCenterTendencyType"/>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-pressure.xsd
Element womlswo:AbstractPressureCenterType / womlswo:maximumWindSpeed
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15

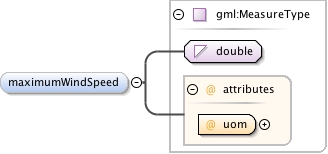

Diagram
Diagram index102.tmp#id317 index102.tmp#id316
Type gml:MeasureType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="maximumWindSpeed" type="gml:MeasureType" minOccurs="0" maxOccurs="1"/>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-pressure.xsd
Complex Type womlswo:AbstractPressureCenterType
Namespace http://xml.fmi.fi/namespace/woml/swo/2011/03/15
Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Concrete Met Object type for low pressure centers.</p>
</html:div>

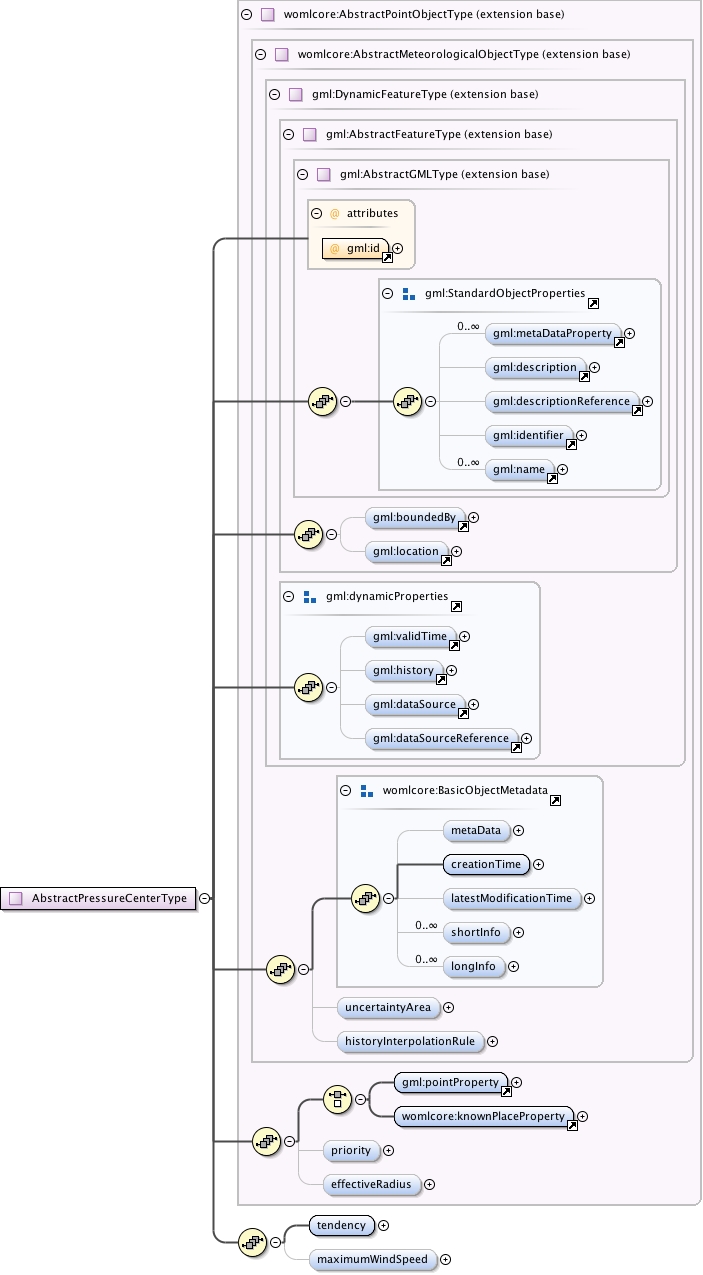

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index42.tmp#id112 index43.tmp#id136 index44.tmp#id76 index45.tmp#id176 index57.tmp#id189 index58.tmp#id198 index59.tmp#id199 index60.tmp#id175 index61.tmp#id75 index62.tmp#id201 index62.tmp#id226 index62.tmp#id227 index62.tmp#id228 index62.tmp#id230 index62.tmp#id200 index63.tmp#id233 index63.tmp#id294 index63.tmp#id74 index64.tmp#id254 index65.tmp#id306 index66.tmp#id314 index66.tmp#id315 index66.tmp#id73 index209.tmp#id2435 index209.tmp#id2437
Type extension of womlcore:AbstractPointObjectType
Type hierarchy
Properties
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:tendency , womlswo:maximumWindSpeed{0,1}
Children gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:maximumWindSpeed, womlswo:tendency
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="AbstractPressureCenterType" abstract="true">
  <annotation>
    <documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Concrete Met Object type for low pressure centers.</p>
      </html:div>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:AbstractPointObjectType">
      <sequence>
        <element name="tendency" type="womlswo:PressureCenterTendencyType"/>
        <element name="maximumWindSpeed" type="gml:MeasureType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-pressure.xsd
