Element gml:TinType / gml:stopLines
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index682.tmp#id289 index1036.tmp#id544
Type gml:LineStringSegmentArrayPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model gml:LineStringSegment
Children gml:LineStringSegment
Instance

<gml:stopLines>
  <gml:LineStringSegment interpolation="linear" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">{1,1}</gml:LineStringSegment>
</gml:stopLines>
Source

<element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
Element gml:TinType / gml:breakLines
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index682.tmp#id289 index1036.tmp#id544
Type gml:LineStringSegmentArrayPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model gml:LineStringSegment
Children gml:LineStringSegment
Instance

<gml:breakLines>
  <gml:LineStringSegment interpolation="linear" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">{1,1}</gml:LineStringSegment>
</gml:breakLines>
Source

<element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd

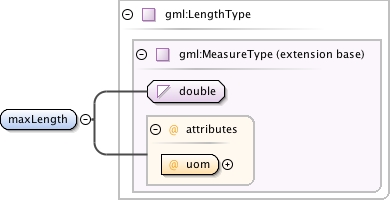

Element gml:TinType / gml:maxLength
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index102.tmp#id317 index102.tmp#id316 index103.tmp#id463
Type gml:LengthType
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="maxLength" type="gml:LengthType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd

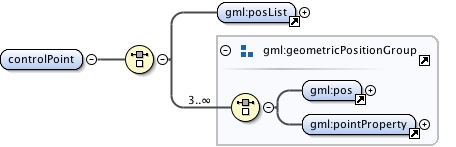

Element gml:TinType / gml:controlPoint
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index178.tmp#id259 index176.tmp#id128 index64.tmp#id254 index590.tmp#id488
Properties
content: complex
Model gml:posList | gml:pos | gml:pointProperty
Children gml:pointProperty, gml:pos, gml:posList
Instance

<gml:controlPoint>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
</gml:controlPoint>
Source

<element name="controlPoint">
  <complexType>
    <choice>
      <element ref="gml:posList"/>
      <group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>
    </choice>
  </complexType>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd

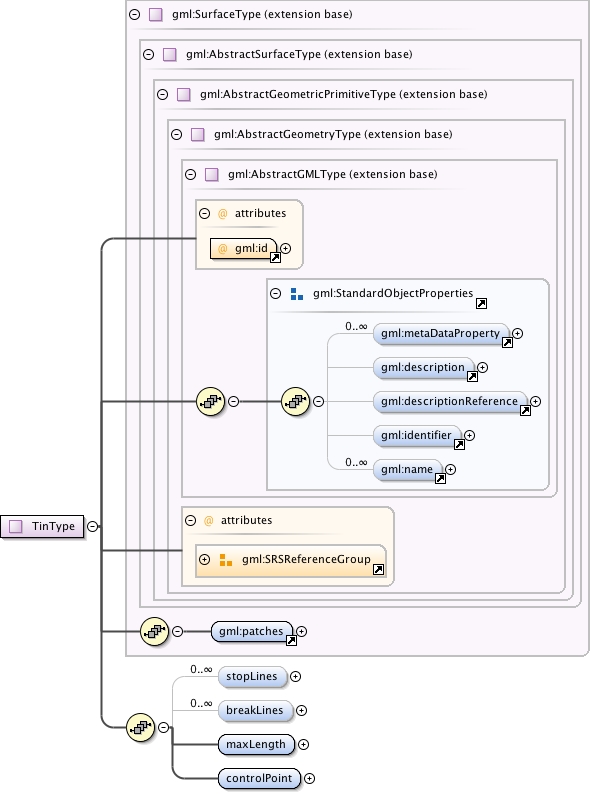

Complex Type gml:TinType
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238 index93.tmp#id237 index884.tmp#id492 index885.tmp#id491 index886.tmp#id543 index886.tmp#id545 index886.tmp#id546 index886.tmp#id547
Type extension of gml:SurfaceType
Type hierarchy
Used by
Element gml:Tin
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:patches , gml:stopLines* , gml:breakLines* , gml:maxLength , gml:controlPoint
Children gml:breakLines, gml:controlPoint, gml:description, gml:descriptionReference, gml:identifier, gml:maxLength, gml:metaDataProperty, gml:name, gml:patches, gml:stopLines
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="TinType">
  <complexContent>
    <extension base="gml:SurfaceType">
      <sequence>
        <element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <element name="maxLength" type="gml:LengthType"/>
        <element name="controlPoint">
          <complexType>
            <choice>
              <element ref="gml:posList"/>
              <group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>
            </choice>
          </complexType>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
