Schema documentation for component metobj:PointMeteorologicalSymbolType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type metobj:PointMeteorologicalSymbolType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

Annotations

A single meteorological symbol fixed at a geospatial point or
                point-like location.

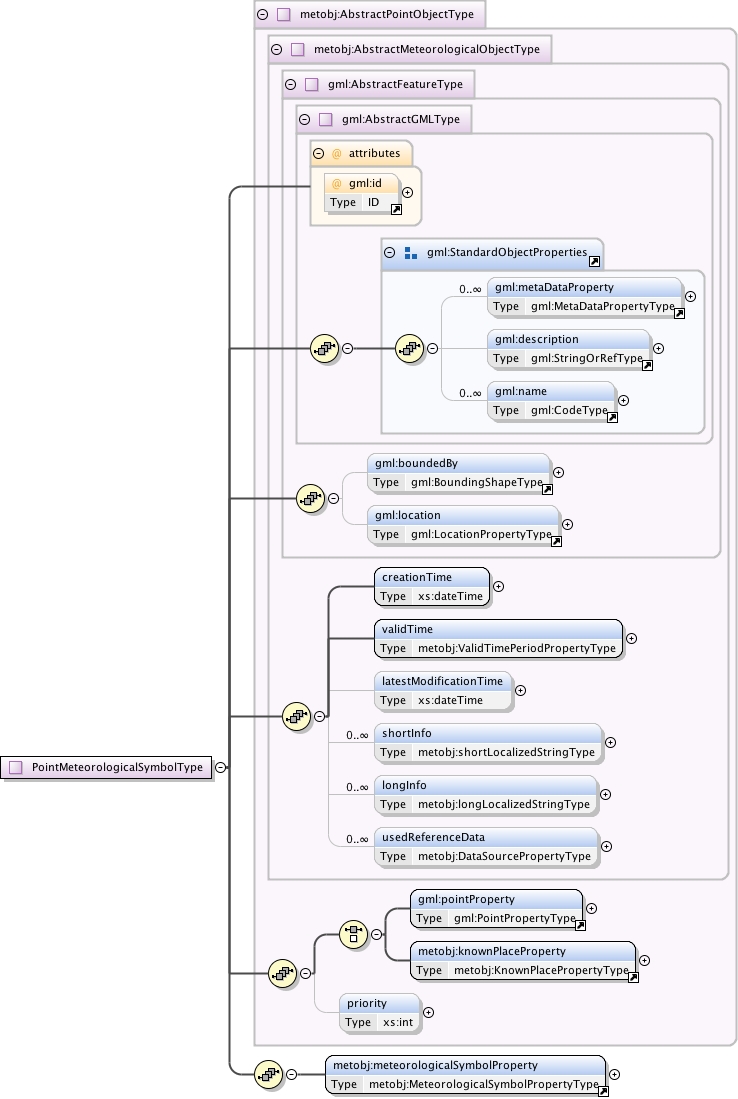

Diagram

Type

extension of metobj:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointMeteorologicalSymbolType

Used by

Element	metobj:PointMeteorologicalSymbol
Complex Type	metobj:DirectedMeteorologicalSymbolType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , (gml:pointProperty | metobj:knownPlaceProperty) , metobj:priority{0,1} , metobj:meteorologicalSymbolProperty

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:meteorologicalSymbolProperty, metobj:priority, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:complexType name="PointMeteorologicalSymbolType">
  <xs:annotation>
    <xs:documentation>A single meteorological symbol fixed at a geospatial point or point-like location.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractPointObjectType">
      <xs:sequence>
        <xs:element ref="metobj:meteorologicalSymbolProperty" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-point.xsd
