Element metobj:DirectedMeteorologicalSymbolType/metobj:direction
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

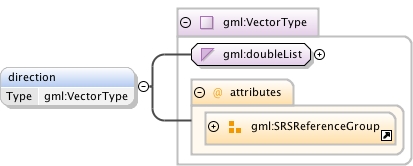

Diagram
Diagram docindex275.tmp#id61 docindex19.tmp#id62 docindex316.tmp#id278
Type gml:VectorType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
				labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
				When the srsName attribute is omitted, this attribute shall also be omitted.
srsDimension positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
				specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
				(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
				location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
				geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
				at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
				gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
				axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
				shall also be omitted.
Source
<xs:element name="direction" type="gml:VectorType" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-point.xsd
Complex Type metobj:DirectedMeteorologicalSymbolType
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Annotations

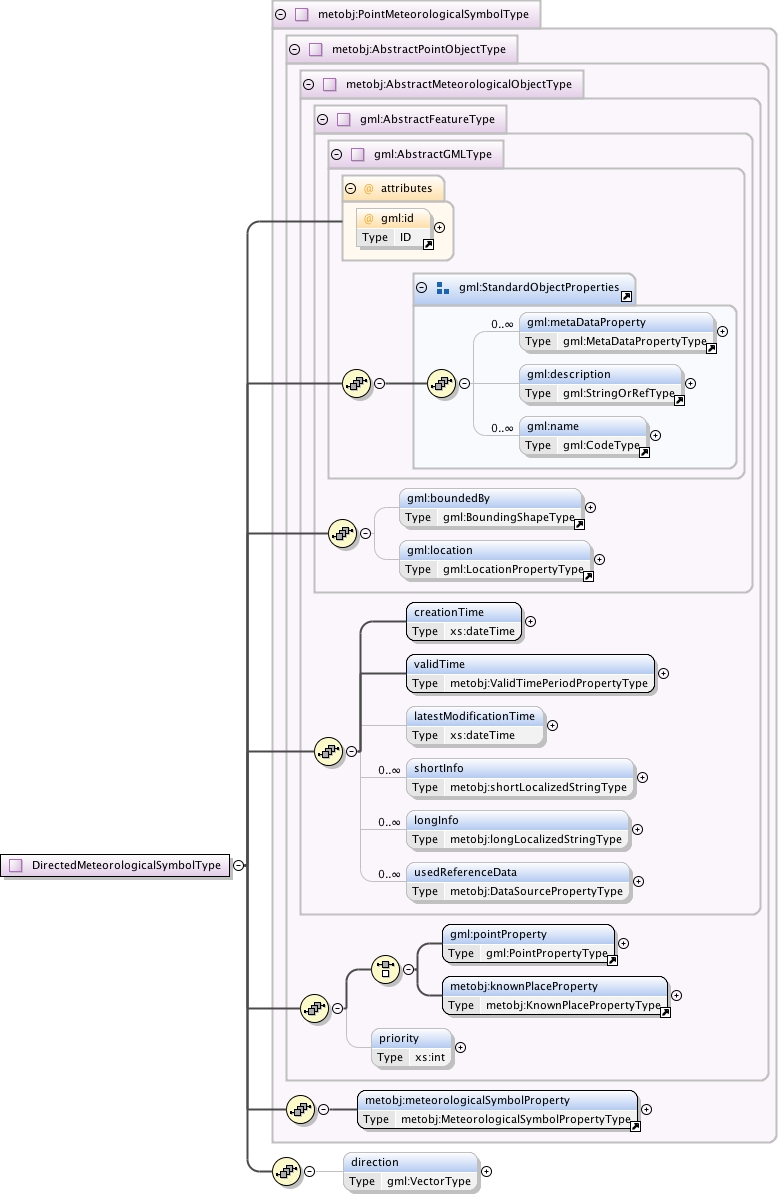

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex12.tmp#id54 docindex13.tmp#id84 docindex14.tmp#id31 docindex15.tmp#id120 docindex15.tmp#id121 docindex15.tmp#id182 docindex15.tmp#id183 docindex15.tmp#id187 docindex15.tmp#id190 docindex15.tmp#id30 docindex37.tmp#id245 docindex139.tmp#id251 docindex272.tmp#id261 docindex272.tmp#id29 docindex140.tmp#id262 docindex333.tmp#id28 docindex336.tmp#id277
Type extension of metobj:PointMeteorologicalSymbolType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , (gml:pointProperty | metobj:knownPlaceProperty) , metobj:priority{0,1} , metobj:meteorologicalSymbolProperty , metobj:direction{0,1}
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:direction, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:meteorologicalSymbolProperty, metobj:priority, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source
<xs:complexType name="DirectedMeteorologicalSymbolType">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:PointMeteorologicalSymbolType">
      <xs:sequence>
        <xs:element name="direction" type="gml:VectorType" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-point.xsd
