Schema documentation for component womlswo:AntimesocycloneType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type womlswo:AntimesocycloneType

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Concrete Met Object type for low pressure centers.</p>
</html:div>See http://sweet.jpl.nasa.gov/2.1/phenAtmoPressure.owl#Antimesocyclone

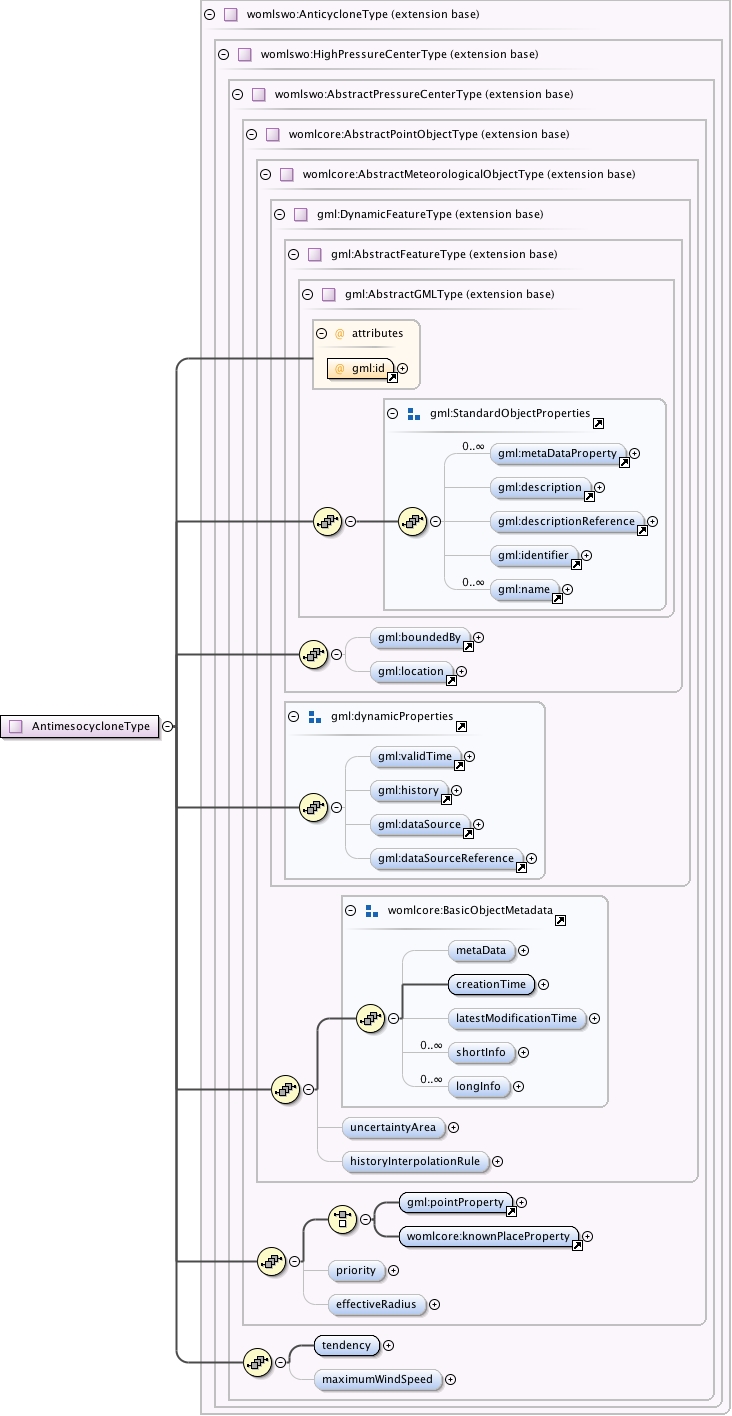

Diagram

Type

extension of womlswo:AnticycloneType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractPointObjectType

        womlswo:AbstractPressureCenterType

        womlswo:HighPressureCenterType

        womlswo:AnticycloneType

        womlswo:AntimesocycloneType

Used by

Element

womlswo:Antimesocyclone

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:tendency , womlswo:maximumWindSpeed{0,1}

Children

gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:maximumWindSpeed, womlswo:tendency

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

Source

<complexType name="AntimesocycloneType">
  <annotation>
    <documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Concrete Met Object type for low pressure centers.</p>
      </html:div>See http://sweet.jpl.nasa.gov/2.1/phenAtmoPressure.owl#Antimesocyclone</documentation>
  </annotation>
  <complexContent>
    <extension base="womlswo:AnticycloneType"/>
  </complexContent>
</complexType>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-pressure.xsd
