Schema documentation for component womlswo:PointMeteorologicalSymbolType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type womlswo:PointMeteorologicalSymbolType

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

Annotations

A single meteorological symbol fixed at a geospatial point or
point-like location.

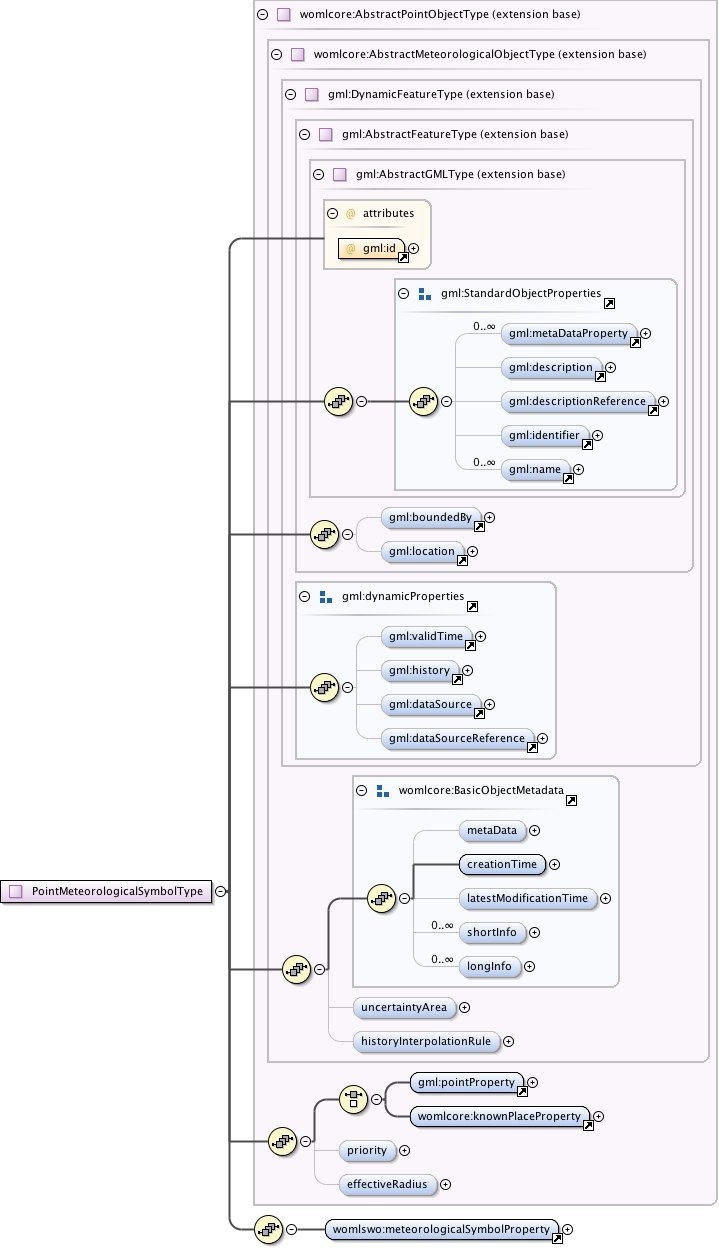

Diagram

Type

extension of womlcore:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractPointObjectType

        womlswo:PointMeteorologicalSymbolType

Used by

Element	womlswo:PointMeteorologicalSymbol
Complex Type	womlswo:DirectionalMeteorologicalSymbolType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:meteorologicalSymbolProperty

Children

gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:meteorologicalSymbolProperty

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

Source

<complexType name="PointMeteorologicalSymbolType">
  <annotation>
    <documentation>A single meteorological symbol fixed at a geospatial point or point-like location.</documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:AbstractPointObjectType">
      <sequence>
        <element ref="womlswo:meteorologicalSymbolProperty" minOccurs="1" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-symbol.xsd
