Schema documentation for component womlswo:DirectionalMeteorologicalSymbolType

Showing:

Annotations

Attributes

Diagrams

Properties

Source

Used by

Element womlswo:DirectionalMeteorologicalSymbolType / womlswo:direction

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

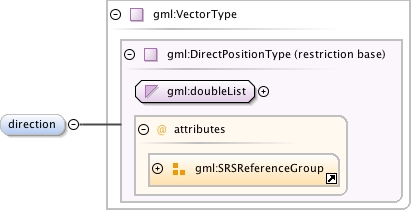

Diagram

Type

gml:VectorType

Type hierarchy

anySimpleType
- gml:doubleList
  - gml:DirectPositionType
    - gml:VectorType

Properties

content:	complex
minOccurs:	0
maxOccurs:	1

Attributes

QName	Type	Use
axisLabels	gml:NCNameList	optional
srsDimension	positiveInteger	optional
srsName	anyURI	optional
uomLabels	gml:NCNameList	optional

Source

<element name="direction" type="gml:VectorType" minOccurs="0" maxOccurs="1"/>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-symbol.xsd

Complex Type womlswo:DirectionalMeteorologicalSymbolType

Namespace

http://xml.fmi.fi/namespace/woml/swo/2011/03/15

Annotations

Meteorological symbol with direction information. An example could be a wind arrow symbol.

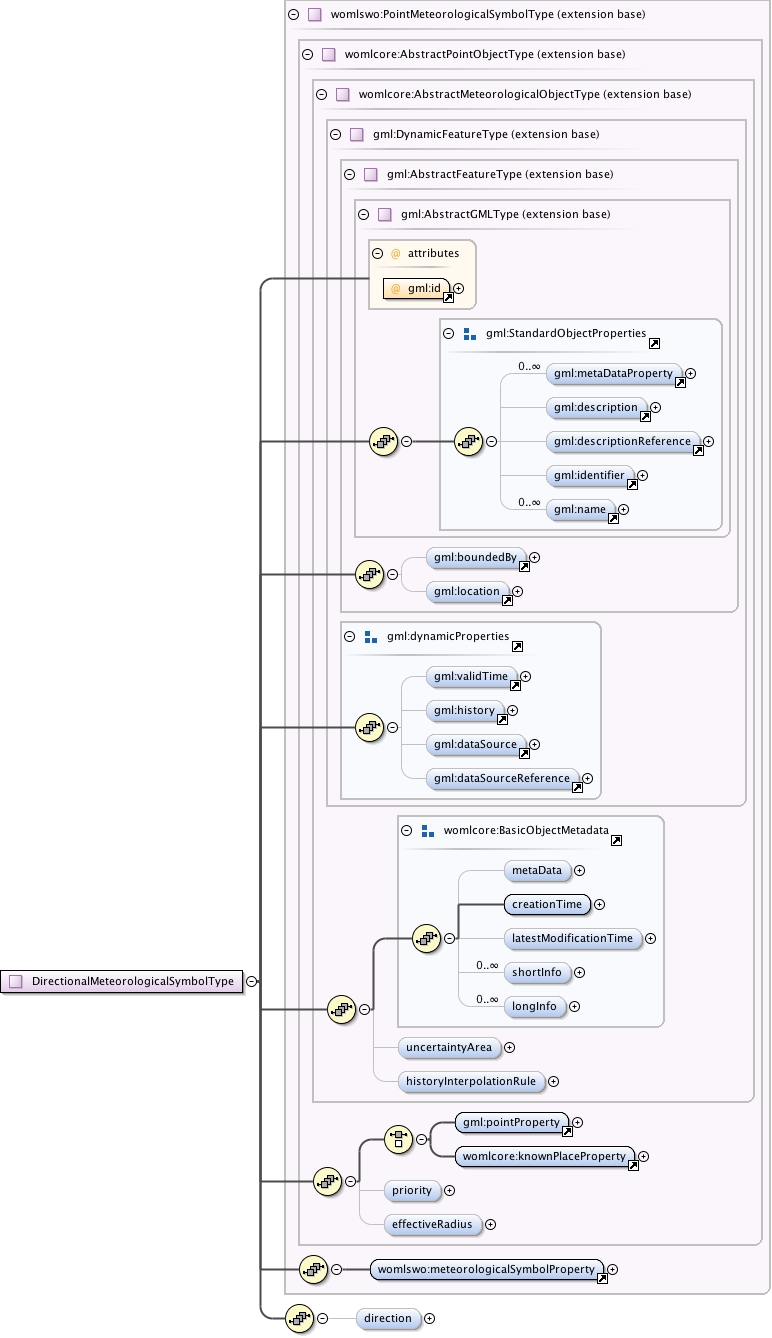

Diagram

Type

extension of womlswo:PointMeteorologicalSymbolType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractPointObjectType

        womlswo:PointMeteorologicalSymbolType

        womlswo:DirectionalMeteorologicalSymbolType

Used by

Element

womlswo:DirectionalMeteorologicalSymbol

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:meteorologicalSymbolProperty , womlswo:direction{0,1}

Children

gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:direction, womlswo:meteorologicalSymbolProperty

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

Source

<complexType name="DirectionalMeteorologicalSymbolType">
  <annotation>
    <documentation>Meteorological symbol with direction information. An example could be a wind arrow symbol.</documentation>
  </annotation>
  <complexContent>
    <extension base="womlswo:PointMeteorologicalSymbolType">
      <sequence>
        <element name="direction" type="gml:VectorType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/ilkkarinne/projects/woml-swo/src/main/xsd/woml/swo/woml-symbol.xsd
